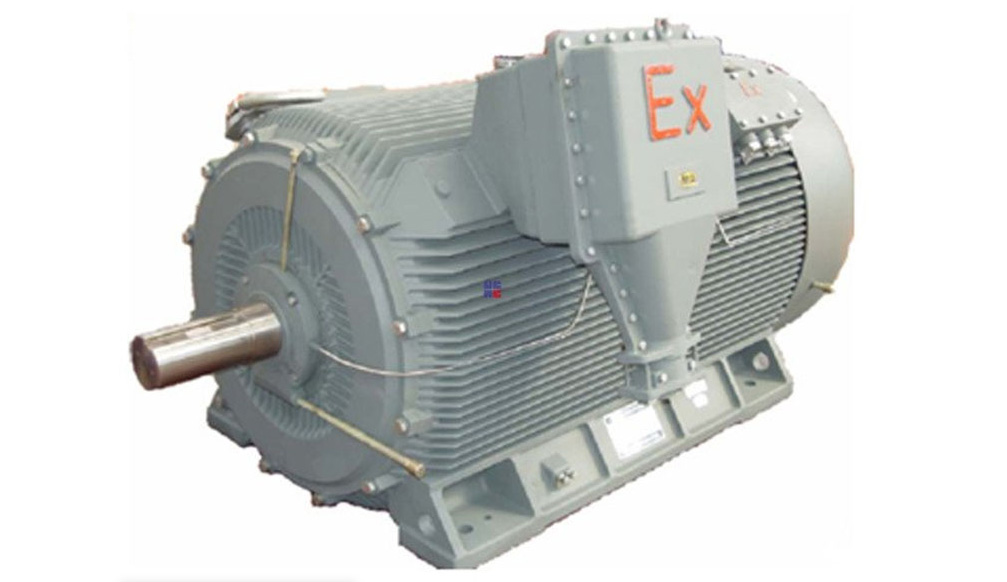

High Voltage Explosion Proof Motor YB3-450-4
A high voltage explosion proof motor YB3-450-4 is a specialized electric motor designed to function safely in environments where there is a potential risk of explosion due to the presence of flammable gases, vapors, or combustible dust.Safety in Hazardous Environments: High voltage explosion p
Send Inquiry
Product Description
A high voltage explosion proof motor YB3-450-4 is a specialized electric motor designed to function safely in environments where there is a potential risk of explosion due to the presence of flammable gases, vapors, or combustible dust.
Safety in Hazardous Environments: High voltage explosion proof motor YB3-450-4 is engineered to operate in locations where the atmosphere may contain explosive substances. Their construction and design focus on preventing any internal sparks or heat that could ignite surrounding hazardous materials.
Industry Compliance: High voltage explosion proof motor YB3-450-4 adhere to rigorous industry standards and certifications to ensure they meet strict safety criteria. Common certifications include ATEX, IECEx, and NEC, depending on the geographic region.
Robust Construction: Built with durability in mind, these motors feature robust enclosures and components to withstand challenging environmental conditions. The sturdy construction helps protect the motor from external elements and potential damage.
YB3-450-4
Electric motor power | 315-400 KW |
Power supply current frequency | 50 Hz |
Number of phases | 3 |
Rated operating voltage | 6000 V |
Rotation speed | 1500 rpm |
Degree of protection | IP55 |
Explosion protection category | 1ExdIIBT4 / 1ExdIIBT4(Gb) |
Design according to the installation method | IM1001 |
Height of the rotation axis | 450 mm |
Weight | Kg(not less than 2500, not more than 4000) |
Climatic version | U2 according to GOST 15150-69 |
Operating mode | S1 |
EFFICIENCY | At least 94.5% |
Cooling method | ICA0151 / IC411 |
The presence of sensors for thermal control of bearing assemblies. | |
Enclosed Design: The motor's housing is tightly sealed to prevent the ingress of flammable substances. This sealed design minimizes the risk of explosive materials entering the motor and causing ignition.
Designed for Varied Applications: High voltage explosion proof motor YB3-450-4 find application in diverse industries such as oil and gas, chemical processing, mining, and manufacturing, where the potential for explosive atmospheres exists. They are crucial for maintaining operational safety in critical industrial processes.
High Voltage Capability: Indicating that the motor operates at high voltage levels, this feature is essential for meeting the power requirements of specific applications within the industrial setting.
Temperature Resilience: High voltage explosion proof motor YB3-450-4 is engineered to withstand elevated temperatures common in industrial processes. This resilience ensures continued operation without compromising safety.
