Three Phase Variable Frequency Asynchronous Motor

Type： Variable frequency motor                                                   Installation method:

Phase:  Three-phase                                                                     B3/B5/B35/V1/V3/V5/V6/B7,B7/B8/V15/V36

Voltage:  380V, 660V, 380/660V/Customized                                No.  of poles: 2-8 pole

Rated output:  0.75-315kW(1-425HP)                                          Duty: S1

Rated frequency:  50Hz(60HZ available)                                     Working Condition: not exceeding 1000m above sea level (Customizable for higher elevations)

Cooling method:  IC411                                                               Advantages: reasonable design, beautiful appearance, high

Protection Feature:  IP55                                                            efficiency,  low noise and vibration.

Insulation class:  F insulation                                                      Certificated: XBS EN ISO 9001:2008,CE,SGS,and CCC

Temperature: - 15 ℃~40 ℃.

• Introduction of the Variable Frequency Motor

Variable frequency motor can realize different speed and torque under the drive of frequency converter to meet the demand of load change. The general frequency conversion motor is derived from the traditional squirrel cage motor; The traditional self cooling fan is usually replaced by an independent fan, and the corona resistance of the motor winding insulation is improved.

Variable speed drive motor refers to the motor that operates continuously at 100% rated load and 10%~100% rated speed under standard environmental conditions, and the temperature rise will not exceed the rated allowable value of the motor.

Variable frequency motor in Class B temperature rise design, Class F insulation manufacturing. The use of polymer insulation materials, vacuum pressure impregnation manufacturing process and special insulation structure has greatly improved the insulation withstand voltage and mechanical strength of the electrical winding, which is competent for high-speed motor operation and resistance to high-frequency current impact of frequency converter and damage to insulation caused by voltage.

The balance quality is high, the vibration level is R (vibration reduction level), the machining accuracy of mechanical parts is high, and special high-precision bearings are used, which can operate at high speed.

The forced ventilation and heat dissipation system adopts imported axial flow fans, which are ultra quiet, long-life and strong wind. It can ensure that the motor can get effective heat dissipation at any speed, and can realize high-speed or low-speed long-term operation.

• The variable frequency motor in high quality control:

01

High-quality copper coil - All copper coil;Strong power; High effciency;No burning;

02

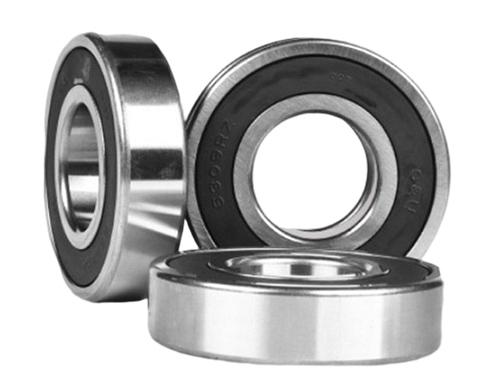

More quiet precision bearing -  Low noise and low lcost, Stable use, Durable;

03

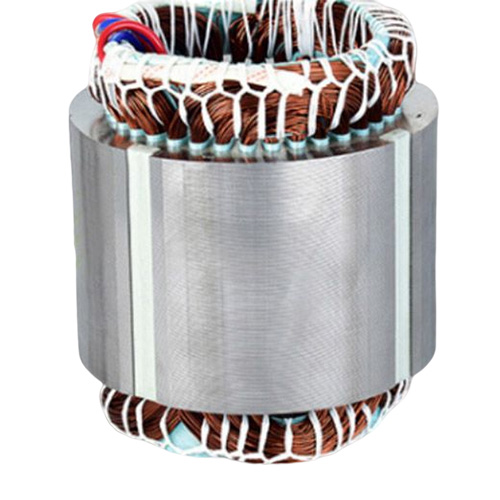

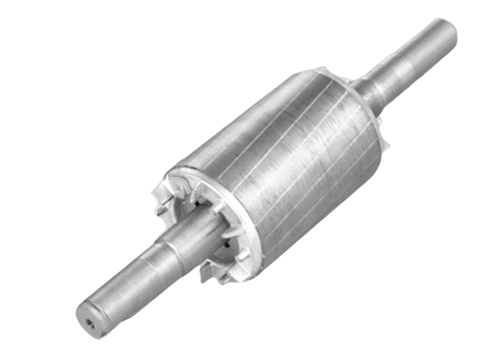

Motor stator and rotor - Die casting integrated performance in colleges and universities;

• Variable Frequency Three-phase Asynchronous Motor Tectonic principle

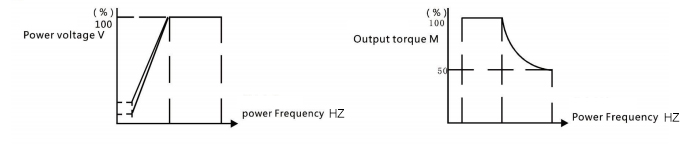

When the slip rate of AC induction motor changes little, the speed is proportional to the frequency. It can be seen that changing the power frequency can change the speed of asynchronous motor. Variable speed motor is always hoped that the main magnetic flux will remain unchanged during variable frequency speed regulation. If the main magnetic flux is greater than the magnetic flux during normal operation, the magnetic circuit will be over saturated, which will increase the excitation current and reduce the power factor; If the main flux is less than the flux during normal operation, the motor torque will decrease.

• Application of variable frequency drive motor

Variable frequency motors are superior to ordinary motors for occasions requiring frequent start, frequent speed regulation, and frequent braking.

With the rapid development of power electronics technology and new semiconductor devices, the AC speed regulation technology has been constantly imporved. The gradually improved frequency converter has been widely used in AC induction motor with its good output waveform and excellent performance price ratio: Large motors, medium and small roller table motors for steel rolling, traction motors for railway and urban rail transit, elevator motors, lifting motors for container lifting equipment, motors for water pumps and fans, compressors, household appliances.

• Operating Characteristic

Advantage of the variable frequency motor?

Variable frequency motor has many advantages, so it has been widely used. The advantages of variable speed motor are as follows:

(1) Easy speed regulation and energy saving.

(2) AC induction motor has simple structure, small volume, small inertia, low cost, easy maintenance and durability.

(3) The capacity can be expanded to achieve high speed and high voltage operation.

(4) Soft start and fast braking can be realized.

(5) Non sparking, explosion-proof and strong environmental adaptability.

Why Milestone Motor advantage for the motor?

Milestone Motor more than 10 years experience of the motor exporting

• For the standard motor, we usually have the stock

• We have professional technical team for Motor technical or project handle.

• OEM/ODM is available

• Within 24 hours fast response.

We insist on the high quality of the IE/YE series asynchronous motor:

New all copper motor

Adopt national standard large slot coil

Cold rolled sand steel

Sale Service

Pre-sale services:

1. Multiple models to choose.

2. Customized products according to your requests.

3. Professional technicians at your side any time.

Services during the sale:

1. Pre-check and safeguard products before delivery.

2. Provide solutions for any possible problems occured.

After-sale services:

1. Warranty:12 months for the machine after delivery.

2. Provide installation guidance.
