Three Phase Explosion Proof Motor Factory

Type：asynchronous, flame proof motor                                        Installation method:

Phase: three phase                                                                        B3/B5/B35/V1/V3/V5

Voltage: 380V, 660V, 380/660V/Customized                                  No. of poles: 2-10 pole

Rated output: 0.75-315kw（1-425HP）                                        Duty: S1

Rated frequency: 50Hz/60Hz                                                        Working condition:  not exceeding 1000m above sea level (Customizable for higher elevations)

Cooling method: IC411                                                                 Advantages: reasonable design, beautiful appearance, high

Protection Feature: IP55                                                               efficiency,  low noise and vibration.

Insulation class:  F insulation                                                       Certificated: XBS EN ISO 9001:2008,CE,SGS,and CCC

Temperature:- 15 ℃~40 ℃.

Induction motor is a kind of motor that uses electromagnetic induction between stator and rotor to induce current in rotor to realize electromechanical energy conversion. The stator of induction motor is composed of stator core, stator winding and base.

Explosion-proof motor is a king of induction motor, can be used in flammable and explosive places, and does not produce electric sparks during operation.

Flameproof motors use flameproof enclosures to separate the electrical parts that may produce sparks, arcs and dangerous temperatures from the surrounding explosive gas mixture. However, the enclosure is not sealed, and the explosive gas mixture around the enclosure can enter the motor through the gap between the joint surfaces of various parts of the enclosure. Explosion may occur when contacting with spark, arc, dangerous high temperature and other ignition sources in the enclosure. At this time, the flameproof enclosure of the motor will not be damaged or deformed, and the explosive flame or hot gas can not ignite the surrounding explosive gas mixture when it passes through the gap of the joint surface.

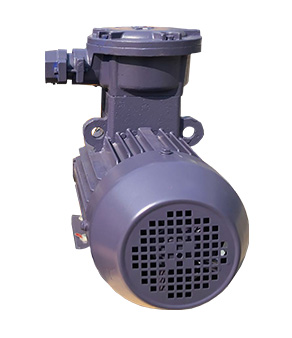

Working principle of YBX3 series explosion-proof motor

Explosion-proof AC induction motor adopts flameproof enclosure to separate the electrical parts that may produce sparks, arcs and dangerous temperatures from the explosive gas mixture around.

The details of YBX3 series AC induction flame proof motor

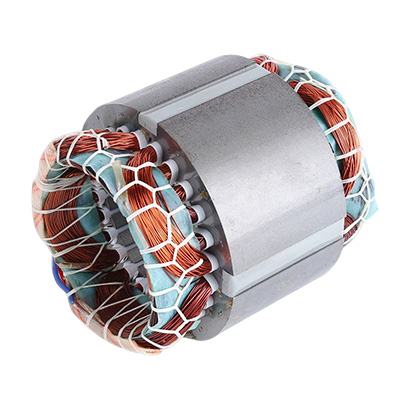

1. All copper coil

High efficiency, low temperature rise, reliable quality and long service life

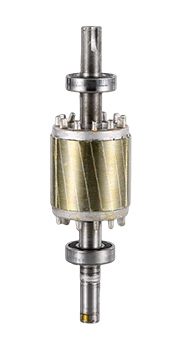

2. High precision rotor

Intelligent dynamic balance debugging, stable operation, wear resistance, low noise, long service life

3. High precision bearing

Excellent stainless steel material has a good dust-proof effect, extending the life of the motor

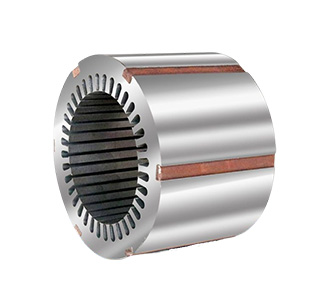

4. Cold rolled steel sheet

Sufficient power, high efficiency, low temperature rise and long service life.

5. Precision casting casing

Precision cast material, wear-resistant and durable

6.Junction box

EX explosion-proof junction box, with strong sealing, effectively prevents dust from entering, and is durable.

7. Breathable cooling cover

Hollow ventilation design, better heat dissipation

The differences between YBX3 flame proof motor and ordinary three phase AC induction motor

Flame proof motor is designed to withstand the pressure caused by an internal explosion without incurring any damage and are also able to prevent flame propagation outside.

1.YBX3 anti-explosion motor is generally used in flammable and explosive occasions.

2.The sealing of the junction box of YBX3 anti-explosion motor is better than that of ordinary AC induction motors.

3. The lowest protection level of YBX3 fire proof motor is IP55, while the ordinary three phase AC induction motor has IP23, IP44, IP54, IP55, IP56.

4.YBX3 explosion proof motor shell marked with Ex logo, ordinary three phase AC induction motor does not. Therefore, it can be distinguished from the appearance.

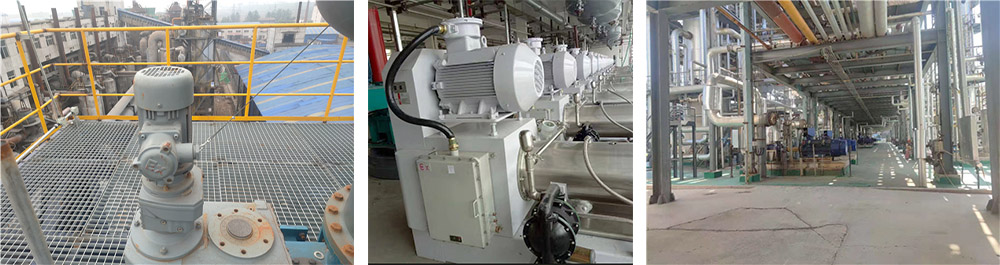

Application

YBX3  AC induction fire proof motor is widely used in coal mill industry, oil & gas industry, chemical industry to drive different equipment like compressors, pumps, gearbox, ball mill machine, lifting machine and other equipment.

Milestone Motor YBX3 series three phase fire proof motor advantages:

1). 30 years of flame proof AC induction motor production experience.

2). XBS EN ISO 9001:2008,CE,SGS,and CCC Certificated.

3). 3000 sets  AC induction explosion-proof motor were sold last year.

4). All models of anti-explosion motor like: YB3/YBX3/YBBP

5). Adequate stocks for anti-explosion motor.

6).Support customized various AC induction motors.

Our Service

Pre-sale services:

1. Multiple AC induction motor models to choose.

2. Customized AC induction motor according to your requests.

3. Professional technicians at your side any time.

Services during the sale:

1. Pre-check and safeguard products before delivery.

2. Provide solutions for any possible problems occurred.

After-sale services:

1. Warranty:12 months for the machine after delivery.

2. Provide installation guidance.
