High Efficiency Three Phase Asynchronous Motor

Induction motors are among the most widely used electrical machines in the world. Thanks to their compact and robust design, asynchronous motors guarantee maximum service life and maintainability for decades.

Type: Asynchronous motor

Phase: Three-phase.                                                                                                   Temperature: - 15 ℃~40 ℃.

Voltage: 380/400V/415V/660V/customized                                                              Installation method: B3/B5/B35/V1/V3/V5/V6/B7,B7/B8/V15/V36

Rated power: 1.1–315 kW (1–425 hp)                                                                     Number of poles: 2-12 poles

Nominal frequency: 50Hz (60Hz available)                                                            Responsibility: S1

Cooling method: IC411                                                                                             Operating conditions: no more than 1000 m above sea level (adjustable for high altitudes)

Protection function: IP55/IP54                                                                                Advantages: Reasonable design, beautiful appearance, high efficiency, low noise and vibration.

Insulation class: F insulation                                                                                   Certified: XBS EN ISO 9001:2008,CE,SGS and CCC.

Induction motors are AC motors, and the modular three-phase motor offers millions of possible drive combinations.

For high efficiency electric motors, we have the YE3, YE4, YE5 series with powers ranging from 0.09 kW to 315 kW. For different voltage, frequency and different power, we can make custom order.

Our other products

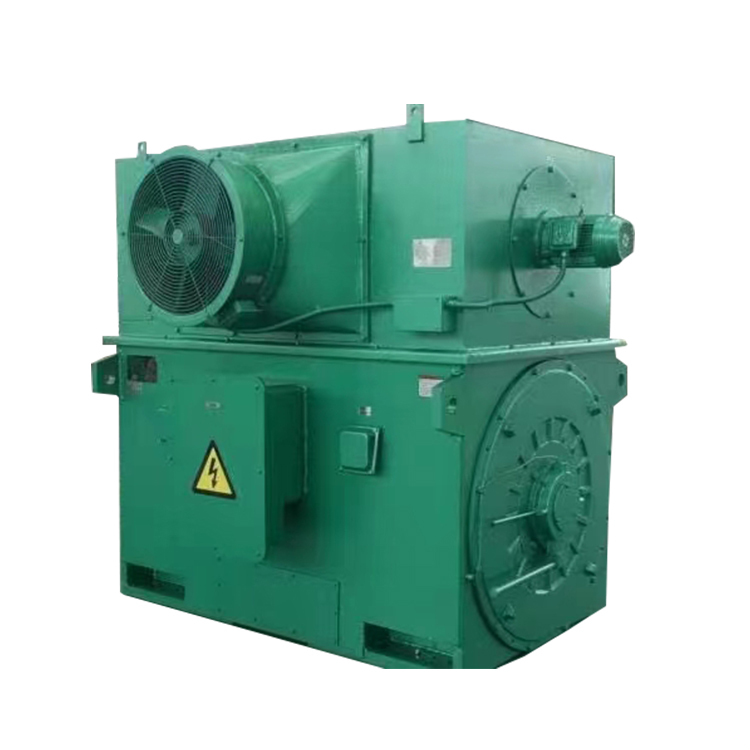

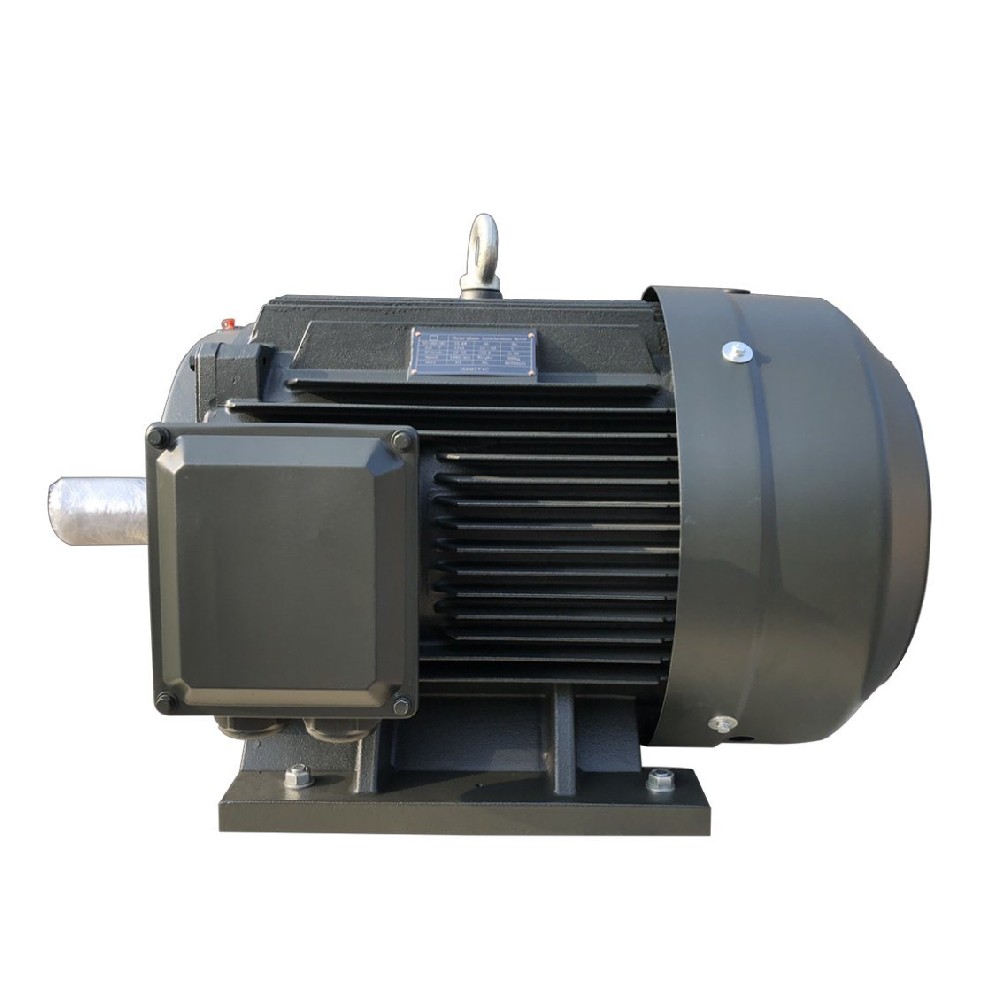

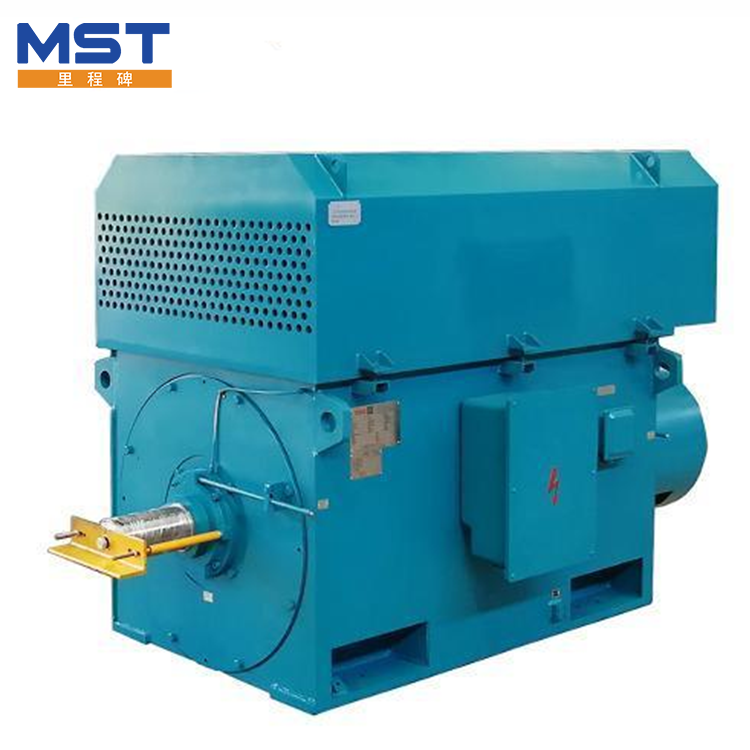

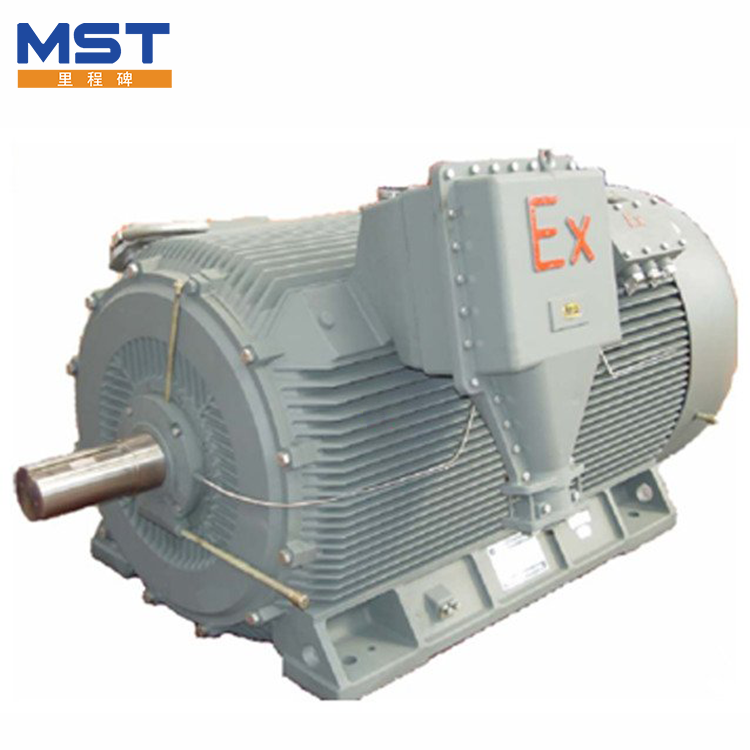

                                 Squirrel Cage Motor                            Slip Ring Motor                High Voltage Explosion Proof Motor

Technical specification

• Working conditions

The induction motor is suitable for most cases and conditions. Standard working conditions of the motor: - 20℃ to +40℃, altitude 1000m above sea level (higher altitude is possible).

• Temperature rise and insulation

The high-efficiency motor is designed according to F class insulation (155℃) and evaluated according to B class insulation (80K). The service life and reliability of the motor are guaranteed.

• Cooling and ventilation

The standard cooling mode is fully enclosed fan cooling (TEFC). The standard induction motor is equipped with a plastic auxiliary flow fan. Conforms to IC411 in IEC C60034-6.

• Degree of protection

The motor protection rating is IP55, which allows it to be used in dusty or wet environments. A three-phase motor with a higher level of protection can also be supplied according to customer requirements.

• Voltage and frequency

A standard three-phase asynchronous motor has a voltage of 380 V/50 Hz. It is possible to design a 50 Hz motor with any voltage in the range of 200–660 V. If the power supply voltage deviates from the rated voltage by ±5%, it can still operate normally.

• Vibration

High-efficiency electric motors must have a Class A vibration level at idle conditions. Class B motors are available for special requirements.

• Location of the junction box

Location of junction box according to customers' requirements.

• Quality assurance

From product design to product delivery, follow the ISO9001 quality certification system and strictly adhere to quality procedures.

High quality three phase asynchronous motor:

New all copper motor

Adopt national standard large groove coil

Cold Rolled Sand Steel

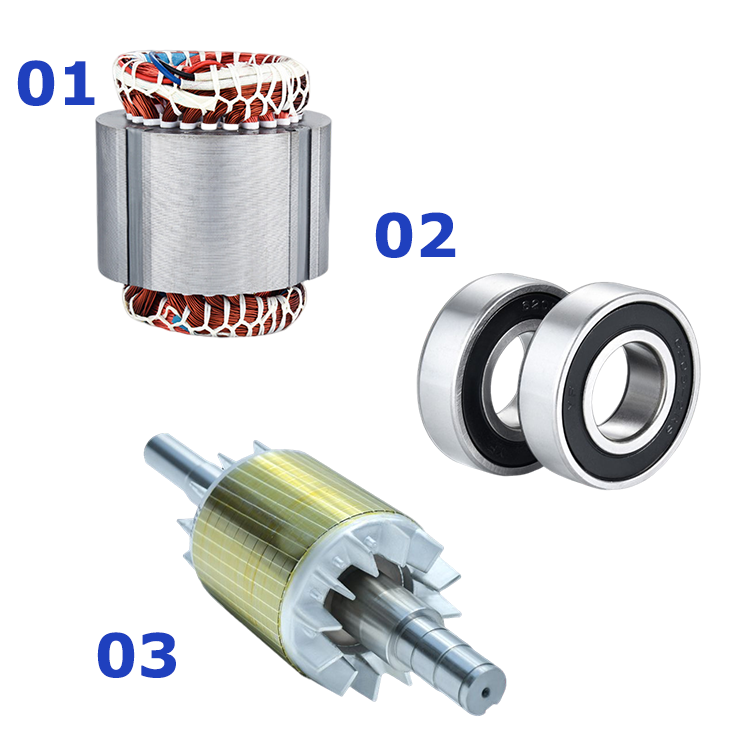

01

High quality copper coil - All copper coil, strong power, high efficiency; No burning.

02

Quieter precision bearing - Low noise and low loss, stable use, durable.

03

Motor stator and rotor - Comprehensive injection moulding at colleges and universities;

Our other products

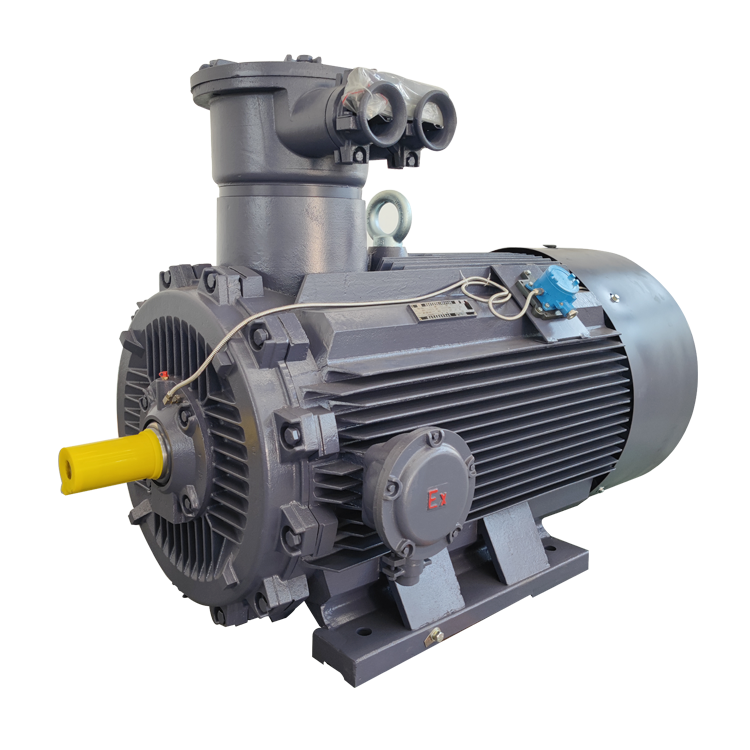

Low Voltage Explosion Proof Motors                      IE3 Motors

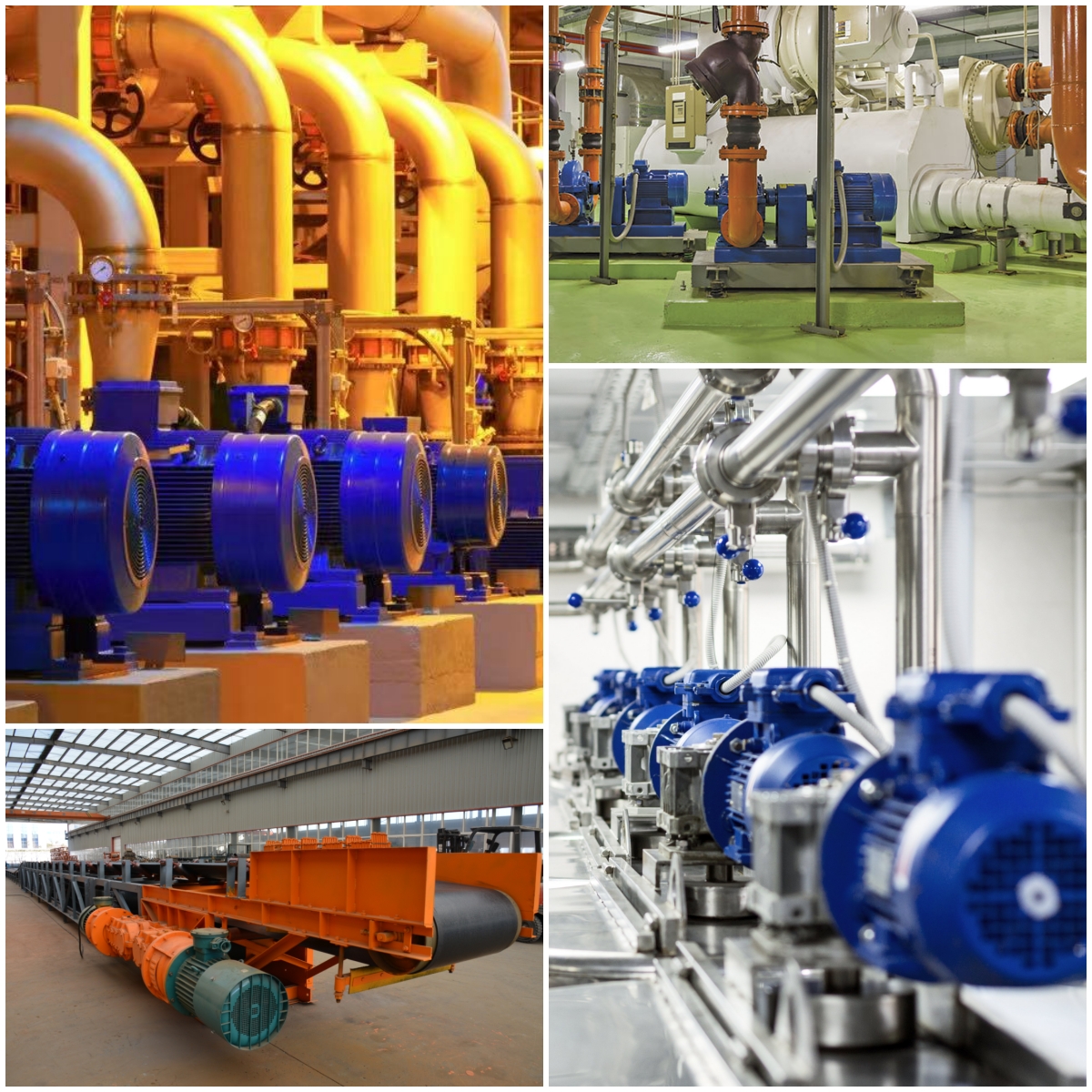

Application

IE/YE series three-phase induction motor is a premium motor that uses cold-rolled non-oriented silicon steel sheet with high magnetic conductivity and low loss, which features ultra-high efficiency, energy saving, low vibration, low noise, reliable operation, and convenient installation and service.

The asynchronous motor is widely used in the following industries:

• Wind energy

• Power Plant Engineering

• Production

• Plastic industry

• Oil and gas industry

• Chemical industry

• Metallurgical industry

• Marine industry

Induction motor is widely used in various machines:

• Steel rolling equipment

• Metal cutting machine

• Light industrial equipment

• Winches and fans in mines

• Water pump

• Thresher

• Meat grinder

• Machines for processing agricultural and by-products

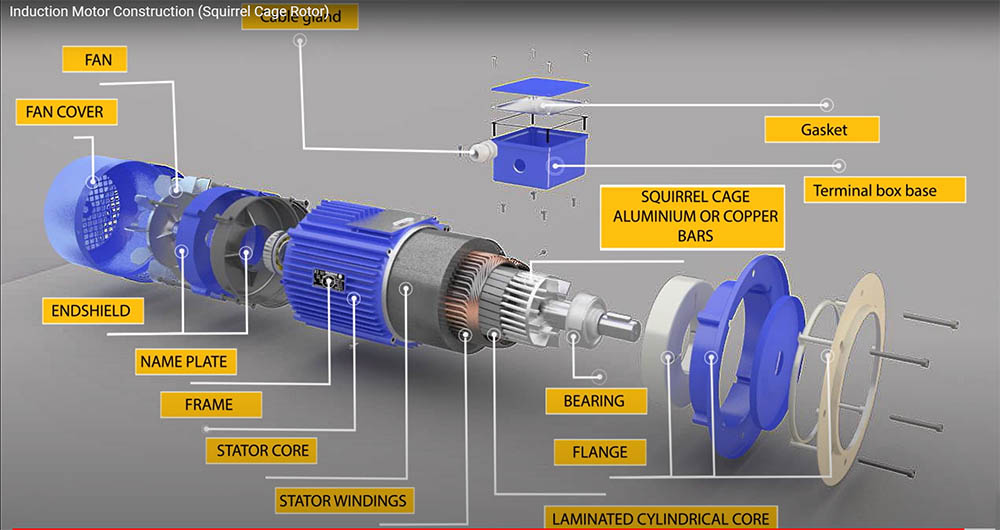

Structure drawing

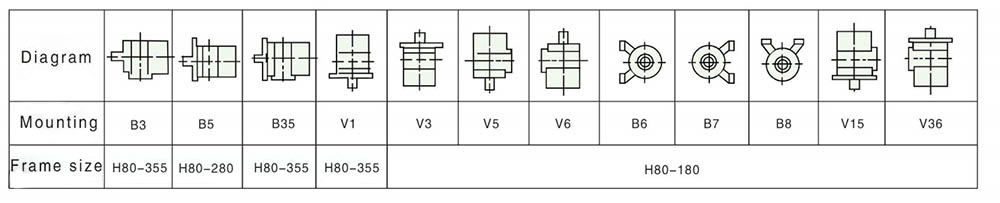

Mounting dimensions of IE/YE series three-phase electric motor
