Low Voltage High Power Motor Manufacturer

Type：asynchronous, low voltage high power motor                                           Insulation class: F

Rated output:  200kW-900kW                                                                             Duty type: S1

Rated frequency:  50Hz/ Customized                                                                 Voltage: 380V/660V/Customized

Cooling method:  IC411                                                                                      No.  of poles: 2-10 pole

Protection Feature:  IP55                                                                                   Certificated: XBS EN ISO 9001:2008,CE,SGS,and CCC

Features of milestone Y3-355-450 series high power industrial motor

1.All adopt high-precision rotors. Intelligent dynamic balance debugging, stable operation, wear resistance, low noise, long service life

2. All adopt copper coil. High efficiency, low temperature rise, reliable quality and long service life.

3.All adopt high-quality cold-rolled silicon steel sheet.

4. The stator winding is Class H insulated enamelled wire.

5.Vacuum impregnation ensures the reliability of insulation structure.

6.The base adopts a heat dissipation rib structure, made of cast iron.

7.The bearing can realize non-stop oil injection and is equipped with a waste oil storage device in the bearing chamber.

8.Two independent cooling air paths take away the heat of the motor and reduce the temperature rise of the motor.

Working environment requirements of electric motor big power.

Place: indoor or outdoor, without hazardous gas

Temperature: the ambient temperature varies with seasons, but the maximum temperature is not more than 40 ℃, and the minimum temperature is not less than - 15 ℃

Altitude: not exceeding 1000m above sea level (Customizable for higher elevations)

Why use milestone Y3-355-450 series low voltage high power motor??

1.High efficiency and energy saving. It is a good choice for you to save costs.

2.Low noise, low vibration. Create a quiet environment for you.

3.Reliable performance. Reduce the number and cost of repairing the motor, thereby increasing economic efficiency.

Application:

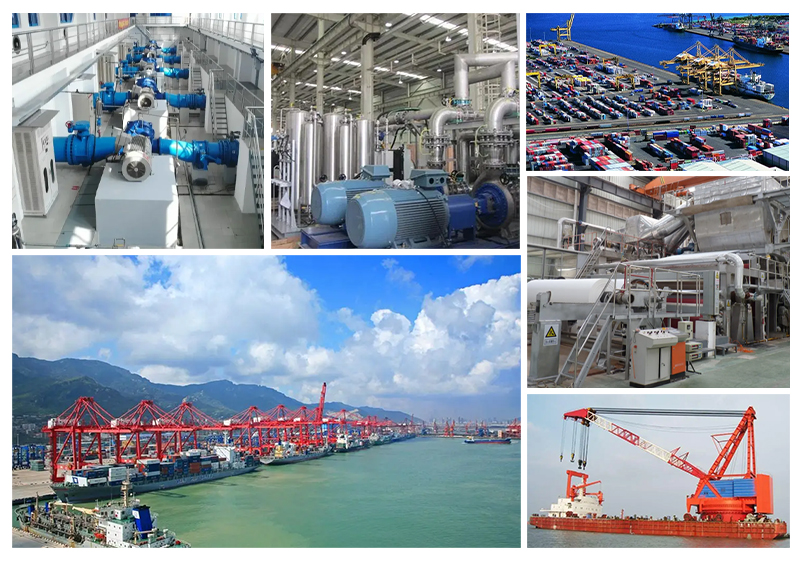

Y3-355-450 series big power motor, as a power machine, is widely used in metallurgy, water supply, oil fields, ports, mines, ships, paper making and other industries.

Milestone Motor Low Voltage High Power Motor Advantages:

1).30 years of electric motor big power production experience.

2).XBS EN ISO 9001:2008,CE,SGS,and CCC Certificated.

3).50,000 sets electric motor big power were sold in the past 5 years.

4).All models of high power industrial motor.

5).Adequate stocks for high power industrial motor.

6).Support customization.

Sale Service

Pre-sale services:

1. Multiple models to choose.

2. Customized products according to your requests.

3. Professional technicians at your side any time.

Services during the sale:

1. Pre-check and safeguard products before delivery.

2. Provide solutions for any possible problems occured.

After-sale services:

1. Warranty:12 months for the machine after delivery.

2. Provide installation guidance.
